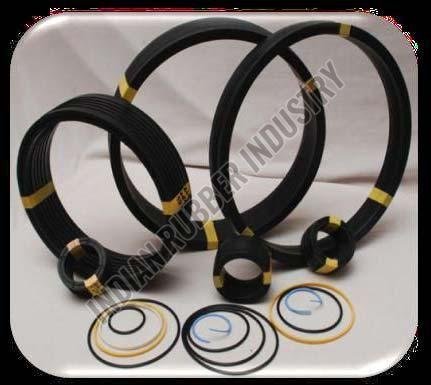

Chevron Packing Seals

We are a prominent Manufacturer, Supplier and Exporter of Chevron Packing Seals. Our range Packing Seals is manufactured using canvas impregnated with NBR. The Seals we make available can withstand a pressure up -to 10000 Psi. Owing to our brilliant logistics network, we are capable of delivering bulk orders of the Seals within the allocated time. Buyers can obtain the Seals at nominal rates from us.


Details :

• The Seals are manufactured canvas impregnated with NBR, which is used in form of set consisting of top and bottom rings.
• The numbers of V-rings in a set are variable and depend upon the pressure to be sealed. These seals can withstand a pressure up -to 10000Psi.

Features : Piston/Rod seal profile is a seal set consist of one or more chevron ring with a header and pressure ring.

Material : Header Ring cotton fabric + NBR or acetel(POM), chevron ring(fabric) fabric + NBR.

Properties : High resistance to extrusion due to fabric reinforced header ring, easy installation, excellent sealing function, long working life in extreme conditions.

Application : Mobile Hydraulic, Machine tools, Agriculture equipment, Standard cylinders, Hydraulic presses, Iron and steel industries, Marine Hydraulic.

Advantage: Long service life, can be optimally adjusted to application, functions over a certain time period even with poorer surfaces, insensitive to contamination, exceptional wear resistance, Rod-seal replacement without complete dismantling possible.

General Technical Data : Working pressure up-to 400 bar.

Temperature range : -20°C to +100°C
Liner velocity : 0.5m/s.
